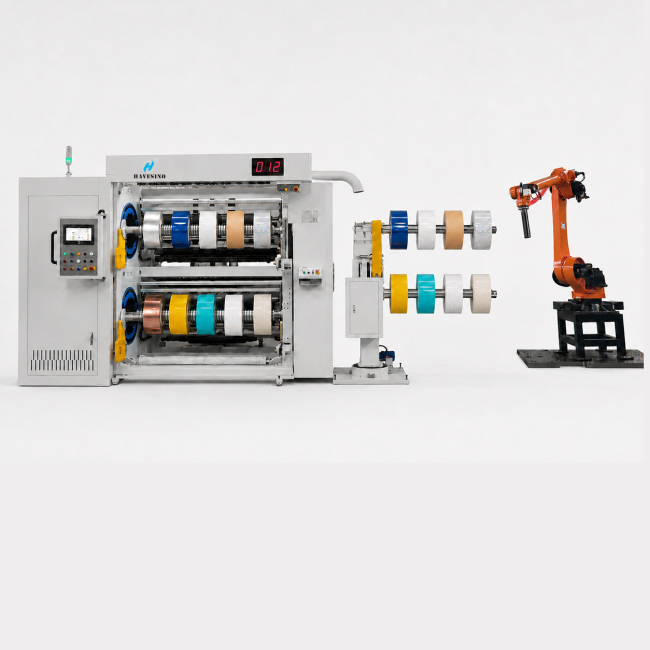

Duplex Turret Slitter Rewinder HN1600T
Duplex Turret Slitter Rewinder HN1600T is specially designed for flexible packaging material slitting, the max slitting speed 500m/min, max slitting width 1600mm. With non-stop slitting function, increase the double producing capacity.
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
APPLICATION
BASIC SPECIFICATION
Model | HN1600T |
---|---|
MATERIAL WIDTH | MAX1600MM |
SLITTING THICKNESS | 12um-180um |
UNWIND DIA | 1200MM (MAX.) |
UNWIND CORE DIA | 76MM (3 INCH) AND 153MM (6 INCH) |
UNWIND TYPE | SHAFTLESS |
REWIND DIA. | 600MM(MAX) |
REWIND WIDTH | RAZOR BLADE 25MM MINI SHEAR BLADE 45MM MINI |
REWIND CORE DIA | 76MM( 3 INCH) AND 152MM (6 INCH) |
REWIND CORE TYPE | FRICTION AIR SHAFT |
SLITTING UNITE | SHEAR BLADE 50 PCS + RAZOR BLADE 50PCS |
MECHANICAL SPEED | 600M/MIN (MAX) |
WORKING SPEED | 500M/MIN (MAX) |
POWER | 380V±10%,3 PHASE,50Hz |
TOTAL AROUND | 60 KW |
AIR CYLINDER-DRIVEN UNLOADING FRAME | |
LASER POSITIONING AND LIGHT DEVICE | 10 PCS |
HYDRAULIC LIFTING UNIT |
|
